AGF-RC AGF-SPV3 AGFrc AGF-SPV3 USB Program Card Used To Adjust The Parameters Of AGFRC Programmable Servo With ASS Icon Mark

17,95 Inclusief BTW

meer dan 20 op voorraad

Waarom mini-zshop.nl

Ervaar snelle service en topkwaliteit bij ons - klanttevredenheid is onze topprioriteit!

Waarom mini-zshop.nl

Ontdek waarom we al meer dan 90 schitterende 5/5 Google reviews hebben ontvangen en word ook een tevreden klant!

Waarom mini-zshop.nl

Wij verwerken je bestelling binnen 5 werkdagen en bieden met een glimlach hulp bij ontevredenheid.

Overview

AGFrc AGF-SPV3 USB program card used for AGFrc servo with ASS icon mark. Easy to use and DIY the parameter of the AGFrc servo. AGF-SP V3 is an upgraded version of the AGF-SP V2, it can use for our 1/5 large scale servo A280BHMW /A280BVSW, 4S high voltage servo A86BUMW , as well as helicopter servo A80BHM-H /A80BHN-H /A80BHX-H /A80BHP-H. What’s more, all of our programmable servo with ASS icon mark, can click the “Narrow Band” function to be used as the Tail Servo.

NOTE: This program card only ideal for AGFRC servo with ASS icon mark! AGFRC servo without ASS icon mark, and other brands of servo are not applicable.

System Requirement

1. Operating Voltage: USB(5V/500mA).

2. Operating System: Windows XP/Windows Vista/Windows 7/Windows 8 /windows10 ( 32/64bit).

3. Application: AGFrc Programmable Servos with ASS icon marked.



修改编程卡 (1)

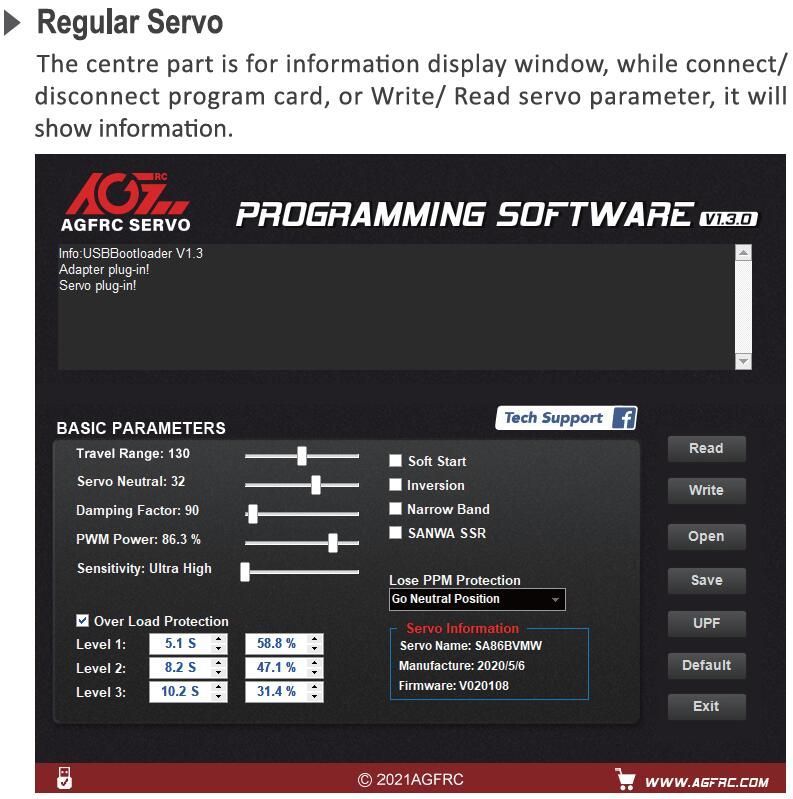

Software Menu Instruction

auto_4622

Parameter Function Instruction

1. Servo Angle: Set the servo rotation angle

2. Servo Neutral: Set the servo neutral position

Note: While the transmitter turn to the neutral position, if the servo do not stay in the corresponding position, it can modify this value to adjust the servo horn. This is equivalent to the trimming of transmitter channel.

3. PWM Power: Adjust the servo output power. The higher the power, the higher the servo torque and speed, current consumption will be high as well.

4. Damping Factor: Set the servo damping.

5. Sensitivity: Adjust the servo dead band (sensitivity).

6. Soft Start: Slowly restoration while power on the servo. Once power on, the servo will gently turn to the position of current input signal.

Note: This function is to prevent damage from servo incorrect mounting while power on.

7. Inversion: Set normal and reverse rotation of the servo.

8. Narrow Band: FUTABA SR Mode

9. SANWA SSR: SANWA SSR Mode

Note: Enable this function, it can support SANWA SSR high speed mode. Servo angle may be not accurate, it need to re-adjust.

10. Lost PPM Protect: Signal loss protection, there are three functions for selection,

a. Release: Non-Protection

b. Keep Position: Stay in the position before the signal loss

c. Go Neutral Position: Back to Neutral position (1500uS position)

11. Over Load Protect: Set the servo blocking protection, there are three levels, ticked to enable protection.

Level 1: Set the starting time and power value of the primary protection.

Level 2: Set the starting time and power value of the secondary protection.

Level 3: Set the starting time and power value of the tertiary protection.

Note: Left side is to set the protection starting time, right side is to set output power value after

enable starting protection.

12. Servo Information: Servo information. Including servo model, version date, firmware name.

Servo Name: Servo model

Manufacture: Servo version date

Firmware: Servo firmware name

13. Read: Read the servo parameter from the software interface.

14. Write: Write current parameter into servo.

15. Open: Open servo parameter file which saved on the computer.

16. Save: Save current servo parameter to the computer

17. UPF: Servo firmware upgrade function.

18. Default: Restore factory defaults.

19. Exit: Exit and close the configuration software

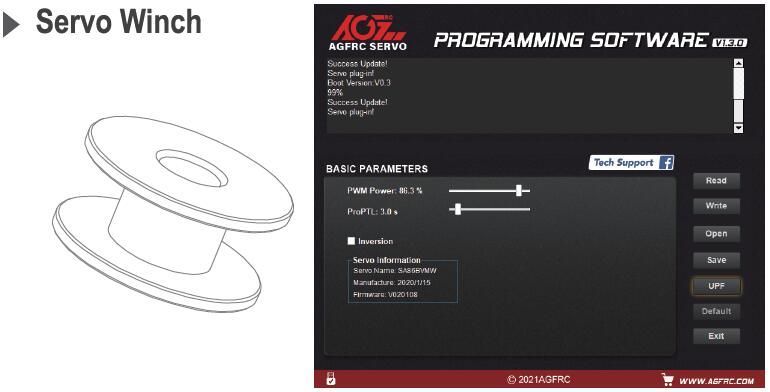

auto_4623

Parameter Function Instruction

1. PWM Power: Adjust the servo output power. The higher the power, the higher the servo torque and speed, current consumption will be high as well.

2. ProPTL:3.0s: The starting time for servo blocking protection (unit: seconds), while the servo is blocked and last up to the setting value, the protection will be active, and servo will stop working.

3. Inversion: Set normal and reverse rotation of the servo

4. Servo Information: Servo information. Including servo model, version date, firmware name.

Servo Name: Servo model

Manufacture: Servo version date

Firmware: Servo firmware name

5. Read: Read the servo parameter from the software interface.

6. Write: Write current parameter into servo.

7. Open: Open servo parameter file which saved on the computer.

8. Save: Save current servo parameter to the computer.

9. UPF: Servo firmware upgrade function.

10. Default: Restore factory defaults.

11. Exit: Exit and close the configuration software.

auto_4614

auto_4624auto_4625auto_4626auto_4618auto_4619auto_4627auto_4628auto_4629auto_4630

Problem and Solution

If it cannot be programmable, how to inspect,

1) Check whether connection is proper or not;

2) Please check whether the programming software is latest version or not;

3) If connection is still failed, please email “support@agfrc.com” for assistance.
